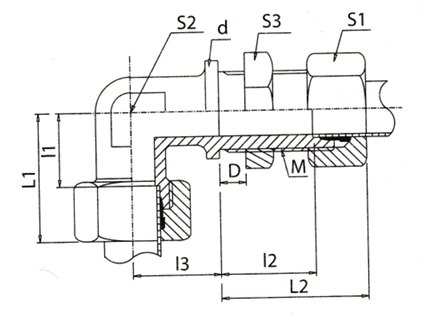

OD of Tube | Working Pressure | M | d | I1 | I2 |
| L1
| L2 | S1 | S2 | S3 | Part No. |
6 8 10 12 15 18 |
L Light Max 250 Bar | M12 x 1.5 M14 x 1.5 M16 x 1.5 M18 x 1.5 M22 x 1.5 M26 x 1.5 | 17 19 22 24 27 32 | 12 14 15 17 21 23.5 | 27 27 28 29 31 32.5 | 14 17 18 20 23 24 | 27 29 30 32 36 40 | 42 42 43 44 46 49 | 14 17 19 22 27 32 | 12 12 14 17 19 24 | 17 19 22 24 30 36 | HFT-BHE-6L HFT-BHE-8L HFT-BHE-10L HFT-BHE-12L HFT-BHE-15L HFT-BHE-18L |
22 28 35 42 |
Max 100 Bar | M30 x 2 M36 x 2 M45 x 2 M52 x 2 | 36 42 50 60 | 27.5 30.5 34.5 40 | 34.5 35.5 36.5 36
| 30 34 39 43 | 44 47 56 63 | 51 52 58 59 | 36 41 50 60 | 27 36 41 50 | 41 46 55 65 | HFT-BHE-22L HFT-BHE-28L HFT-BHE-35L HFT-BHE-42L |
6 8 10 12 14 |
S Heavy Max 500 Bar |
M14 x 1.5 M16 x 1.5 M18 x 1.5 M20 x 1.5 M22 x 1.5
|
19 22 24 27 27 |
16 17 17.5 21.5 22
|
29 29 29.5 30.5 32 |
17 18 20 21 23 |
31 32 34 38 40 |
44 44 46 47 50
|
17 19 22 24 27 |
12 14 17 17 19 |
19 22 24 27 30 |
HFT-BHE-6S HFT-BHE-8S HFT-BHE-10S HFT-BHE-12S HFT-BHE-14S |
16 20 25 |
Max 400 Bar | M24 x 1.5 M30 x 2 M36 x 2
| 30 36 42 | 24.5 26.5 30 | 31.5 33.5 35 | 24 30 34 | 43 48 54 | 50 55 59 | 30 36 46 | 24 37 36 | 32 42 46 | HFT-BHE-16S HFT-BHE-20S HFT-BHE-25S |
30 38 | Max 200 Bar | M42 x 2 M52 x 2 | 50 60 | 35.5 41 | 37.5 37 | 39 43 | 62 72 | 64 68 | 50 60 | 41 50 | 50 65 | HFT-BHE-30S HFT-BHE-38S |
