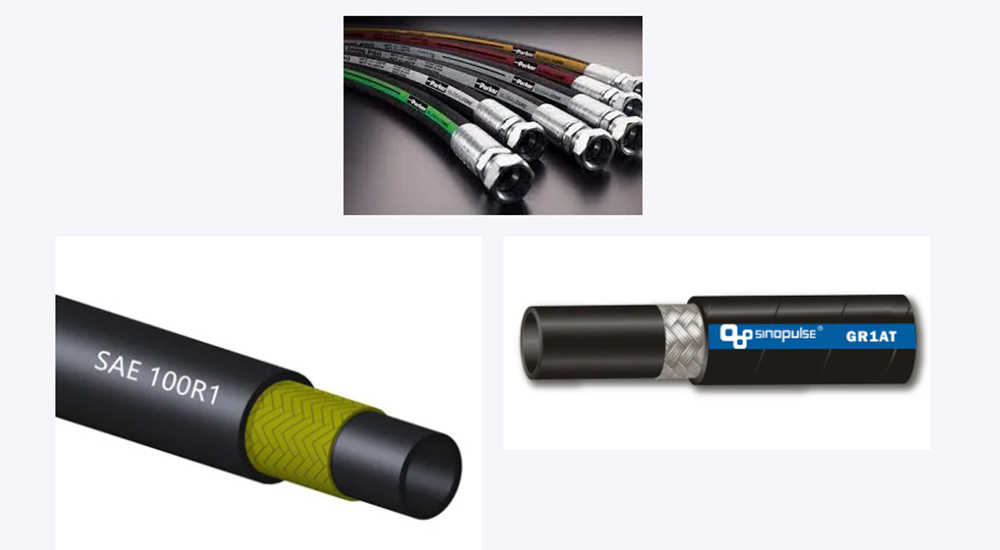

SAE 100 R1 AT Hydraulic Hose

ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
mm Inch mm BAR PSI BAR PSI mm Inch KG/MTR MTR
6.00 1/4 13.40 225 3263 900 13050 100 3.90 0.25 100+
8.00 5/16 15.00 215 3118 860 12470 115 4.50 0.27 100+
10.00 3/8 17.40 180 2610 720 10440 127 5.00 0.34 100+
12.00 1/2 20.50 160 2320 640 9280 178 7.00 0.455 100+
16.00 5/8 23.70 130 1885 520 7540 200 7.90 0.550 100+
20.00 3/4 27.70 105 1523 420 6090 241 9.50 0.675 100+
25.00 1 28.50 88 1276 352 5104 300 11.80 1.025 100
31.00 1-1/4 35.60 63 914 252 3654 420 16.50 1.250 50
38.00 1-1/2 50.40 50 725 200 2900 500 19.70 1.45 40
50.00 2 63.50 40 580 160 2320 635 25.00 2.00 40

Tube

Black, oil-resistant synthetic rubber (NBR).

Reinforcement

Single braided high tensile steel wire.

Cover

Wrap & Smooth – Black, oil and abrasion-resistant synthetic rubber.

Temperature Range

-40°C to +100°C (+120°C Intermittent).

Applications

For medium to high pressure hydraulic lines applied in various applications like earthmoving and other industries.

Properties

  • Uniform Thickness
  • High Pressure
  • Flexible

Applicable Standards

SAE 100 R1 AT / DIN EN853 1SN

Standard Colour

  • Inner Tube – Black
  • Outer Cover – Black

Marking on the Hose

Indo-Maksson – SAE 100 R1 I.D. W.P.

Made in India
