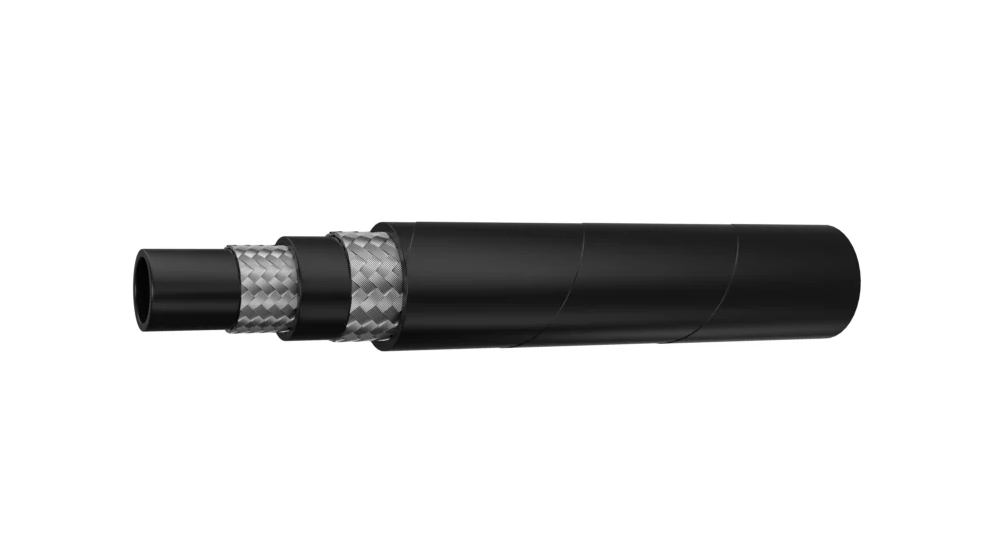

SAE 100 R3 Hydraulic Hose

ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
mm Inch mm BAR PSI BAR PSI mm Inch KG/MTR MTR
6.00 1/4 14.30 87 1250 348 5046 76 3.00 0.16 100+
8.00 5/16 17.50 84 1218 336 4872 101 4.00 0.24 100+
10.00 3/8 19.10 78 1131 312 4524 101 4.00 0.28 100+
12.00 1/2 23.50 70 1015 280 4060 127 5.00 0.38 100+
16.00 5/8 27.00 61 885 244 3538 140 5.50 0.45 100+
20.00 3/4 31.80 52 754 208 3016 152 6.00 0.63 100+
25.00 1 38.00 39 566 156 2250 203 8.00 0.75 100
31.00 1-1/4 44.50 26 377 104 1500 254 10.00 0.97 50
38.00 1-1/2 51.00 17 247 68 986 305 12.00 1.23 50
50.00 2 – 15 218 60 870 409 16.1 – 40

Tube

Black, oil-resistant synthetic rubber (NBR).

Reinforcement

Double braided high tensile yarn.

Cover

Black, oil and abrasion-resistant synthetic rubber.

Temperature Range

-40°C to +100°C (Approx.).

Applications

For medium pressure hydraulic lines applied in various applications like earthmoving and other adjacent industries.

Properties

  • Uniform Thickness
  • High Pressure
  • Flexible

Applicable Standards

SAE 100 R3 / DIN EN854

Standard Colour

  • Inner Tube – Black
  • Outer Cover – Black

Marking on the Hose

Indo-Maksson – SAE 100 R3 I.D. W.P.

Made in India
