Straight Union - Hydrofit Products Manufacturer

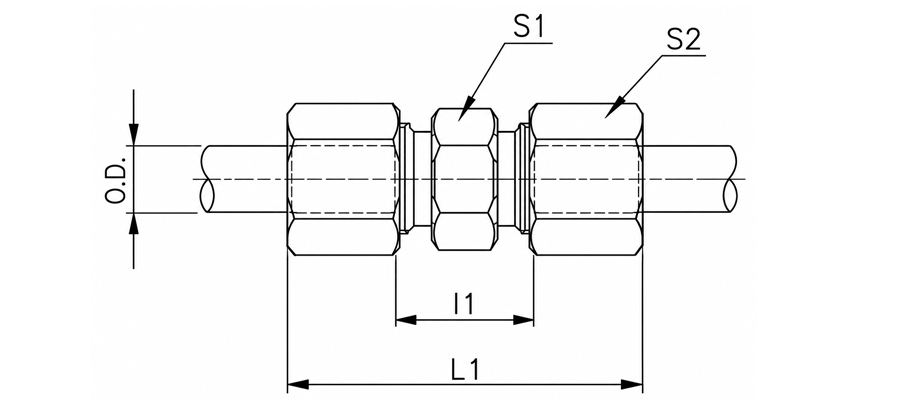

Part No.	Tube O.D.	Series	S1	S2	L1	l1
G 4 LL	4	LL Very Light NP 100	9	10	31	12
G 6 LL	6		11	12	32	9
G 8 LL	8		12	14	35	12
G 10 LL	10		14	17	35	12
G 12 LL	12		17	19	35	11
G 6-L	6	L Light NP 250	12	14	39	10
G 8-L	8		14	17	40	11
G 10-L	10		17	19	42	13
G 12-L	12		19	22	43	14
G 15-L	15		24	27	46	16
G 18-L	18	NP 160	27	32	48	16
G 22-L	22	NP 160	32	36	52	20
G 28-L	28	NP 100	41	41	54	21
G 35-L	35		46	50	63	20
G 42-L	42		55	60	66	21
G 6-S	6	S Heavy NP 630	14	17	45	16
G 8-S	8		17	19	47	18
G 10-S	10		19	22	49	17
G 12-S	12		22	24	51	19
G 14-S	14		24	27	57	22
G 16-S	16	NP 400	27	30	57	21
G 20-S	20		32	36	66	23
G 25-S	25		41	46	74	26
G 30-S	30	NP 250	46	50	80	27
G 38-S	38	NP 250	55	60	90	29
